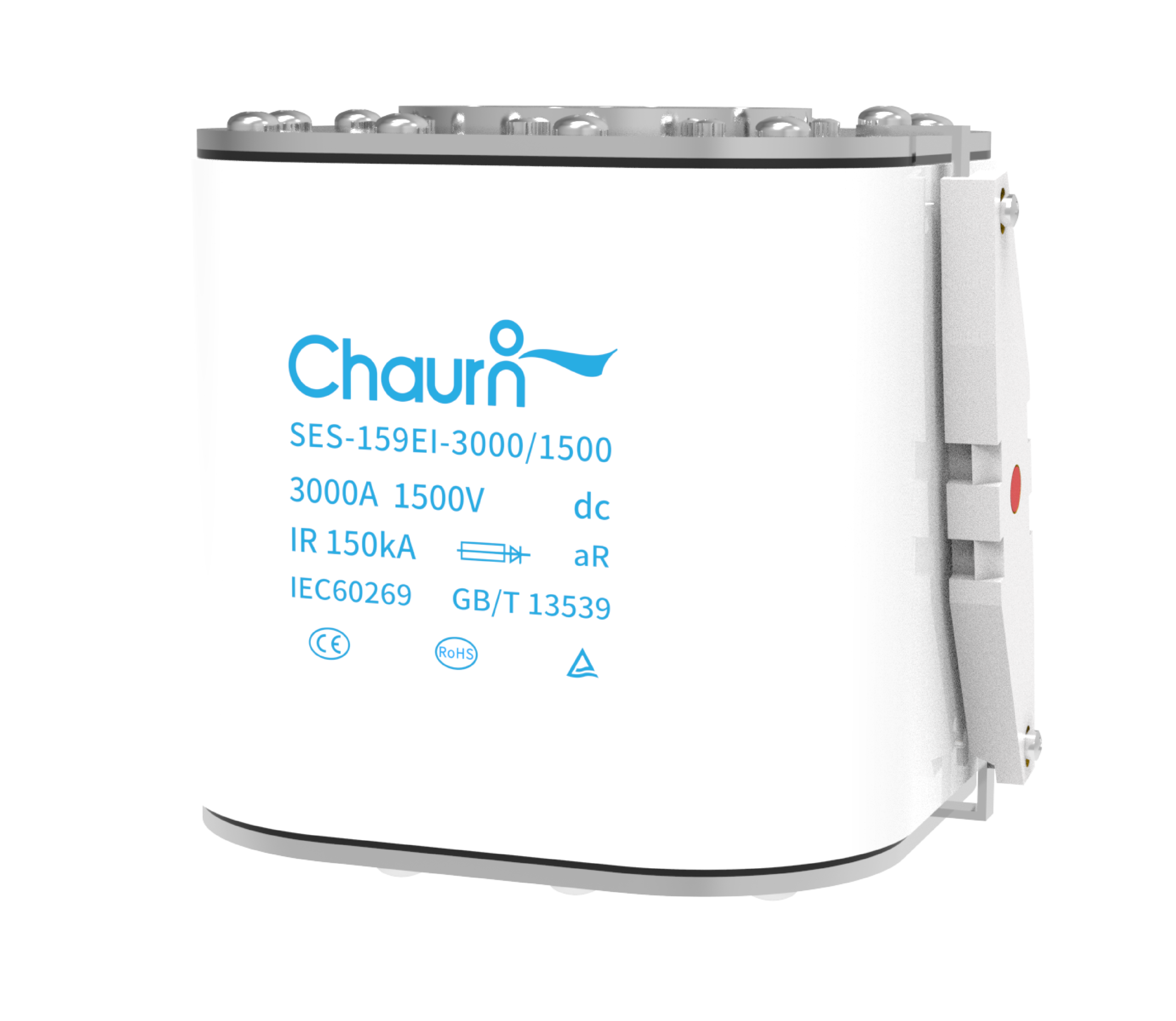

HVDC Fuse 159EI
SES-159EI-1500V high current DC fuse rated DC1500V, 1250A~3000A, 250kA breaking capacity, meets IEC60269-4 & GB/T13539.4, for high voltage distribution box and PCS energy storage equipment.
BASIC PARAMETERS
Rated voltage: DC1500V
RatedCurrent: 1250-3000A
Breaking range: 250kA
Executive standard: IEC60269-4, GB/ T13539.4
RoHS Compliant, TUV, CCC
Overall dimensions
|
Models |
Rated voltage (V) | Rated current (A) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) |
| SES-159EI | 1500 | 1250-3000 | 144 | 157 | 159 | 159 | 62 | 62 | 172 |
90 |
