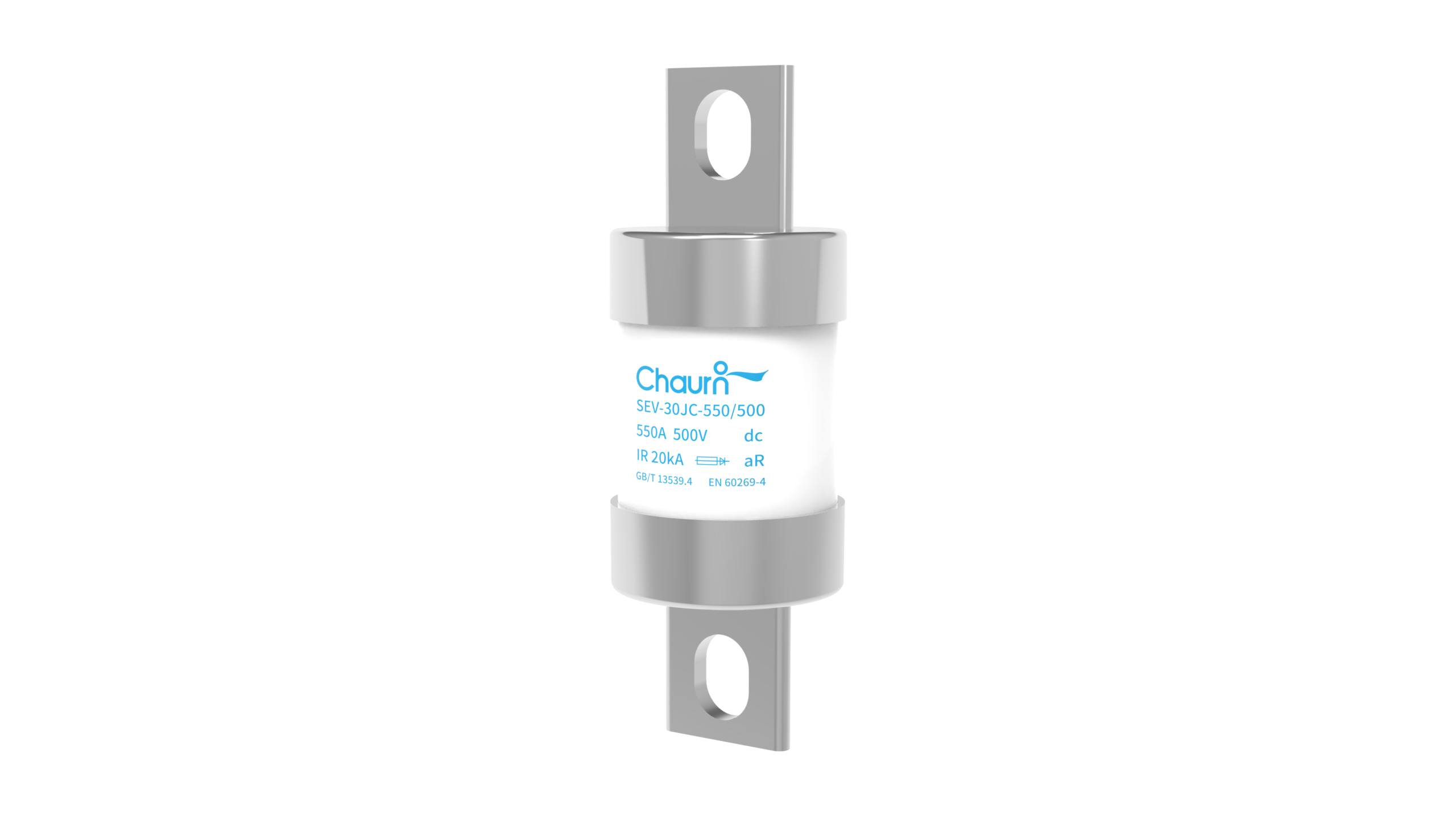

HVDC Fuse SEV-30JC
DC500V 100A protection fuse, GB/T13539 standard fuse, electric vehicle safety fuse, battery module fuse, charging pile fuse
BASIC PARAMETERS
Rated voltage: DC250-500V
RatedCurrent: 100-500A
Breaking range: 20kA (L/R≤ 2ms)
Executive standard: ISO8820, GB/T13539, JASOD622, IEC60269
RoHS Compliant
PRODUCT CERTIFICATION
TÜV, CCC
Overall dimensions
| Model | Rated voltage (V) | Rated current (A) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) |
| SEV-30JC | 250 | 200-400 | 69 | 45 | 32 | 75 | 20 | 9 | 32 | 2.8 |
| 500 | 100-500 | 86 | 62 | 49 | 92 | 20 | 9 | 32 | 2.8 |
