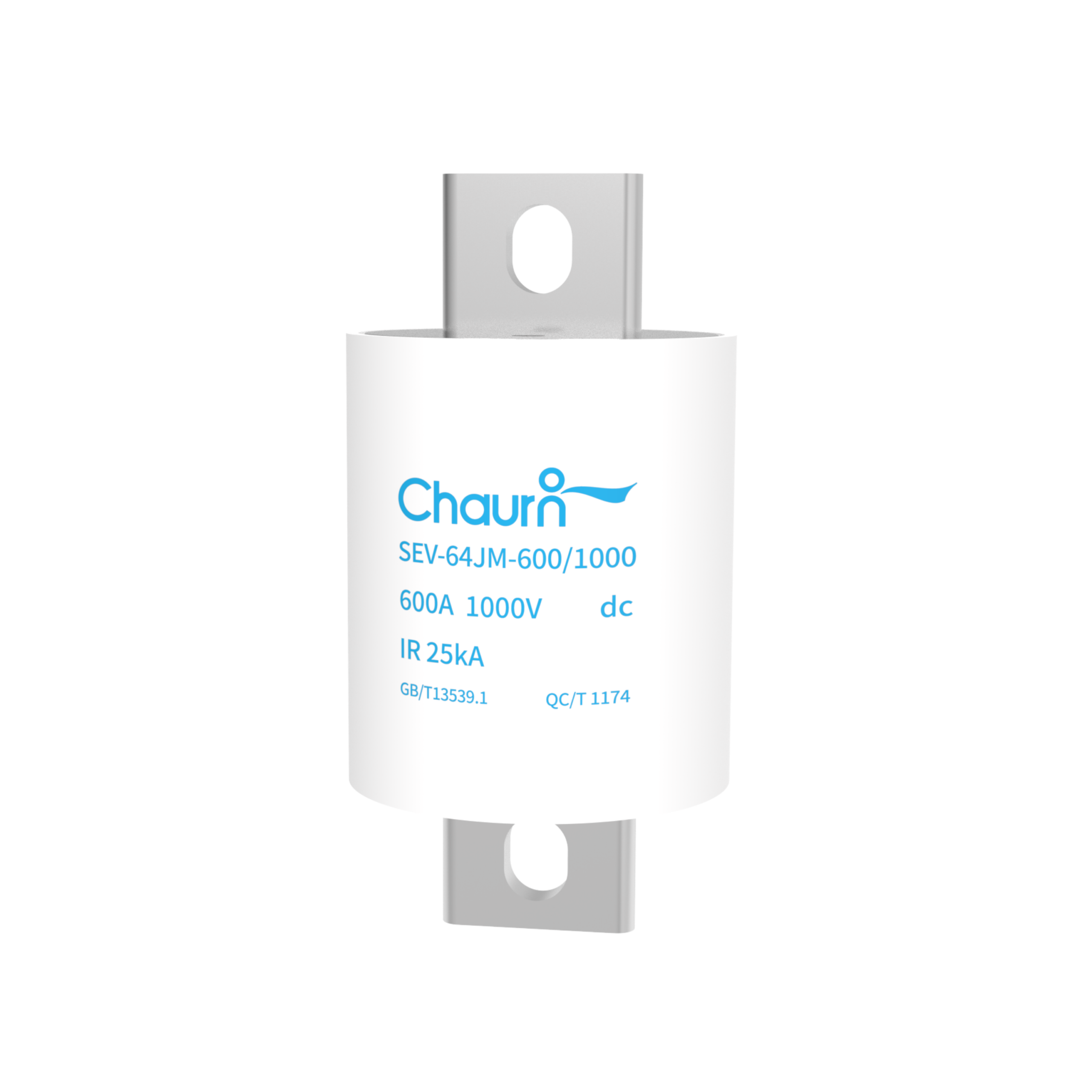

HVDC Fuse SEV-64J
BASIC PARAMETERS
Rated voltage: DC1000V
Rated Current: 400-800A
Breaking range: 25kA (L/R≤ 5ms)
Executive standard: GB/T13539.1, GB/T13539.4
RoHS Compliant
Overall dimensions
| Model | Rated voltage(V) | Rated current (A) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) |
| SEV-64JM | 1000 | 400-800 | 112.5 | 84.5 | 72 | 122 | 32 | 10.5 | 63 | 6 |
Related Products
Need help selecting the right fuse?
Tell us your rated voltage, current and application. Our engineering team will help you select the right fuse for your project.
