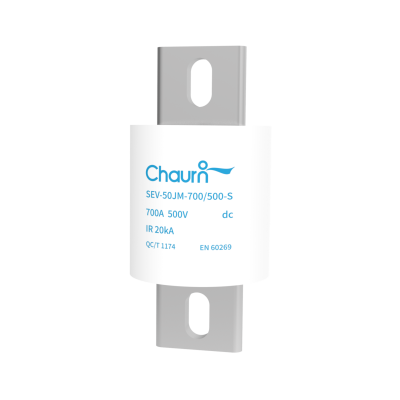

HVDC Fuse SEV-50JM
25kA breaking capacity fuse, L/R≤5ms HVDC fuse, GB/T13539.1 GB/T13539.4 compliant fuse, RoHS high voltage protection fuse.
BASIC PARAMETERS
Rated voltage: DC500V
RatedCurrent: 125-630A
Breaking range: 20kA(L/R≤ 2ms)
Executive standard: ISO8820, GB/T31465, IEC60269, GB/T 13539
RoHS Compliant
Overall dimensions
| Model | Rated voltage(V) | Rated current (A) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) |
| SEV-50JM | 500 | 600-900 | 100 | 66 | 53 | 108 | 32 | 9 | 50 | 6 |
